ECHO Speed Feed 400 Spring Kit Installation & Replacement

Speed Feed trimmer heads occasionally lose their internal spring during impacts with hard surfaces—striking concrete, metal fixtures, or buried obstacles can pop the cap off and eject the small but critical spring. Without this spring, the bump-feed mechanism cannot maintain proper tension on the spool. This can cause uncontrolled line release or prevent the head from feeding line correctly during operation. Understanding the maintenance kit solution prevents discarding otherwise functional trimmer heads.

How Spring Loss Occurs

Impact with solid objects while trimming can dislodge the Speed Feed cap. When the cap separates, the internal spring often ejects unnoticed—operators typically notice and retrieve the visible cap while the small spring disappears into grass or debris. The trimmer may function briefly, but line control degrades rapidly. By the next property, excessive line feeds with each bump, spinning wildly and tangling. Without the spring providing proper tension, the bump-feed mechanism may not regulate line advancement properly, resulting in excessive line release or failure to feed line when bumped.

The Complete Maintenance Kit Solution

Rather than purchasing only replacement caps, the ECHO Speed Feed 400 maintenance kit (part number 90170Y) includes both the cap and internal spring. This complete assembly restores full trimmer head function when springs are lost or when existing springs lose tension over time.

The kit contains just two components: the outer cap that covers the spool mechanism and the coil spring that provides the tension necessary for proper bump-feed operation. This spring sits inside the cap assembly and applies constant pressure that allows controlled line release when the head strikes the ground.

Installation Process

Installing the maintenance kit requires minimal time and no special tools. Remove the damaged or springless cap from the trimmer head. On most Speed Feed 400 heads, the cap can be removed by pressing the release tabs or pulling the cap from the spool assembly, depending on the specific version of the head. Discard the old cap and spring if present.

Position the new spring inside the replacement cap according to its designed seating—the spring fits into a specific recess in the cap's interior. With the spring properly seated in the cap, align the cap assembly with the spool body. Press the cap firmly onto the spool until it clicks into secure engagement. The spring now provides proper tension for bump-feed operation.

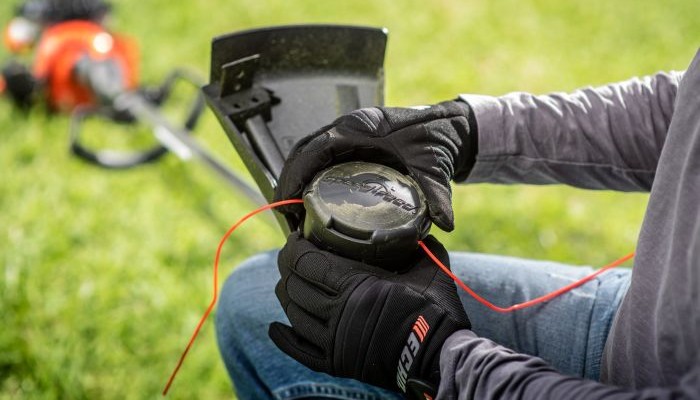

Thread trimmer line through the Speed Feed eyelets as normal. With the engine off, rotate the head by hand to confirm the cap is seated securely and the spool moves correctly. During the next trimming operation, verify that the bump-feed mechanism advances line normally. Properly installed springs allow controlled line advancement rather than uncontrolled release.

Cost Considerations and Availability

Replacement caps are commonly sold individually through ECHO dealers and hardware retailers. The complete maintenance kit—including both the cap and spring—is also widely available and is typically priced modestly higher than the cap alone. The modest price difference makes the complete kit worthwhile for any cap replacement—even when the spring wasn't lost, replacing both components simultaneously ensures optimal performance and eliminates the risk of spring-related failures shortly after installing a new cap alone.

For professional operations running multiple trimmers, maintaining several maintenance kits in inventory prevents downtime when spring loss occurs in the field. The kit's compact size allows easy storage in service trucks or equipment trailers.

When to Replace Rather Than Repair

Severely worn trimmer heads with damaged spool bodies, cracked housings, or stripped threads warrant complete trimmer head replacement rather than maintenance kit installation. However, heads showing only normal wear with functional spool mechanisms and intact housings benefit from maintenance kit service rather than premature replacement.

The maintenance kit extends trimmer head service life substantially, transforming what appears to be a failed component requiring $30-50 replacement into a simple $15 repair. For commercial operations managing equipment costs carefully, this distinction matters—especially when spring loss affects multiple units across a trimmer fleet.

Understanding that the complete maintenance kit exists and includes the often-overlooked spring prevents operators from purchasing caps alone only to discover the spring remains the missing component preventing proper function.
