DGW400DML

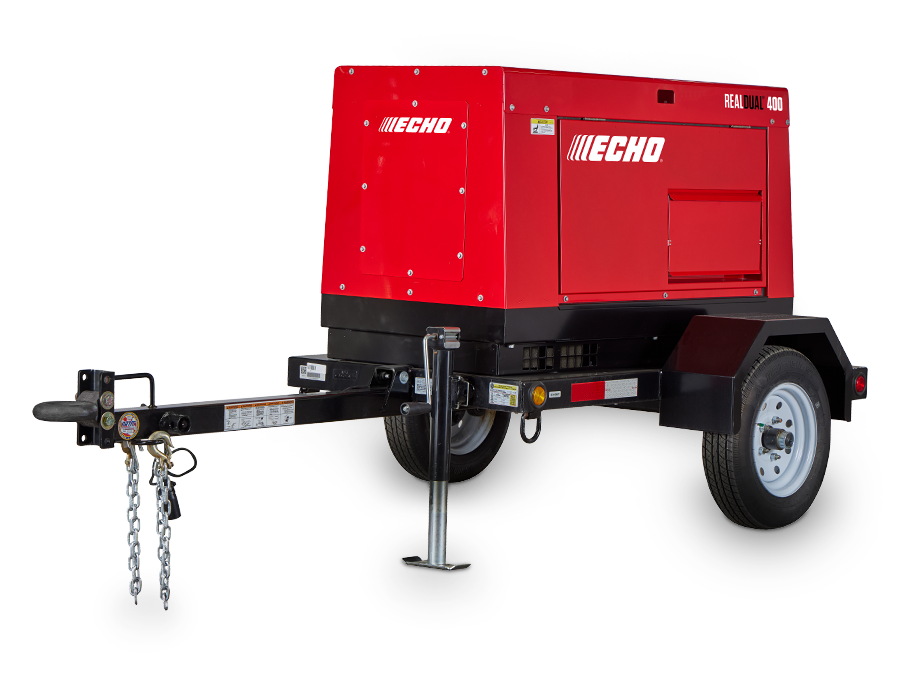

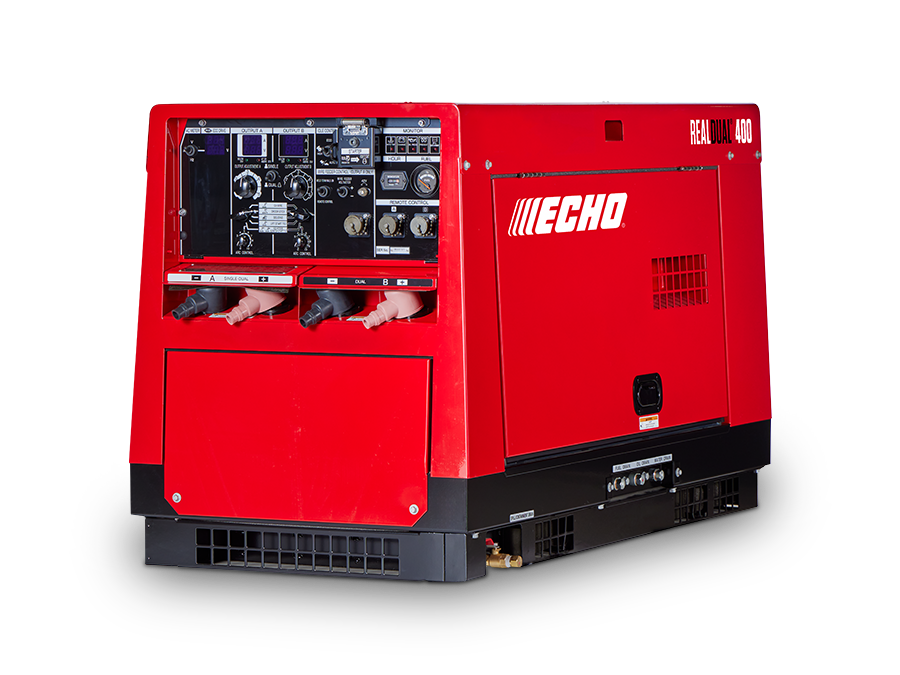

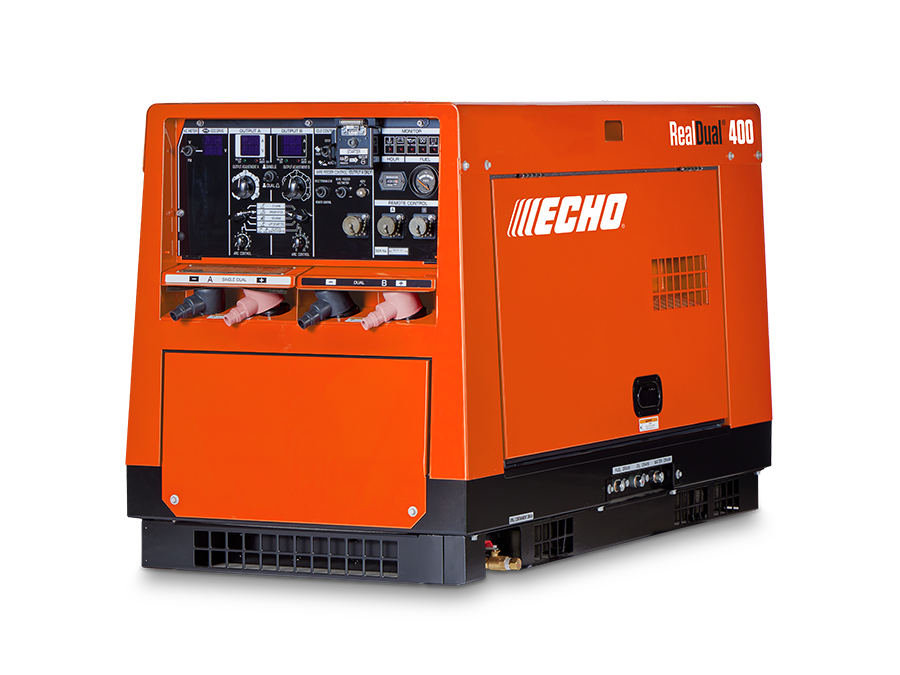

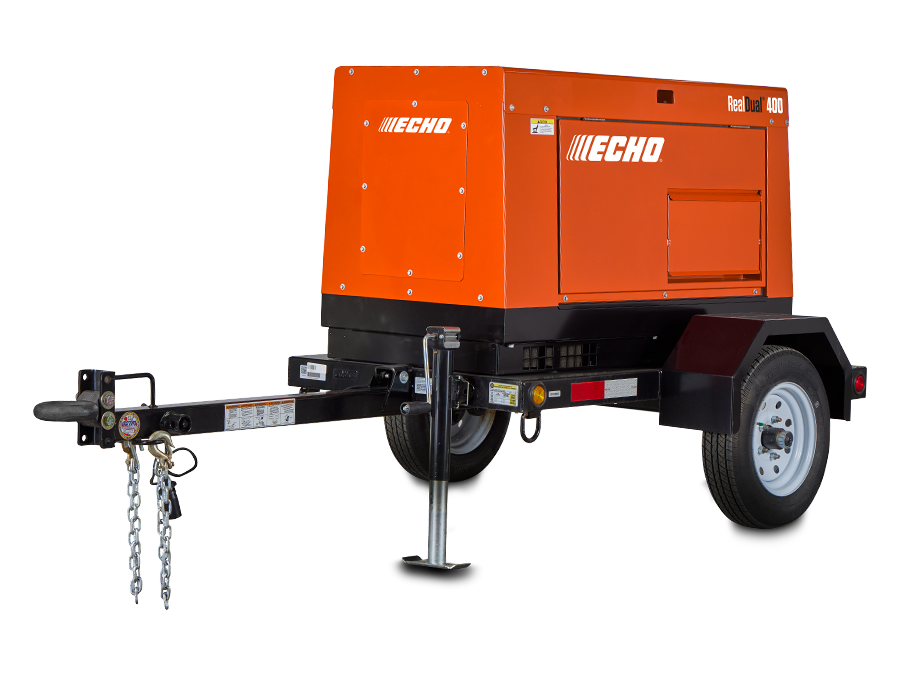

Built for heavy-duty performance, the ECHO DGW400DML delivers 400 amps of welding power and dual-operator capability for maximum productivity. This towable welder generator combines reliable power with versatile welding functions, making it the perfect solution for demanding jobsites. Rugged, durable, and ready for the toughest conditions.
TOP FEATURES- Single and Dual Welder Capabilities
- 3-phase and 1-phase generator output
- Rental Ready Design
- Kubota D902 - Tier 4 Final / CARB
DGW400DML
Features
DUAL OPERATOR. MAXIMUM POWER.
5-in-1 Welding Flexibility
Tackle any job with Wire, Arc, Droop Stick, TIG, and CC Stick capabilities in one machine.
Flexible Power Output
Simul-Phase™, 3-phase, and single-phase options deliver adaptable power for a wide range of tools and jobsite demands.
Rental Ready Design
Engineered for long life and reliable performance in extreme environments.
Includes convenient lifting points for easy transport quick setup.
Specs
| Length (in./mm) | 56.5/1435 |
| Width (in./mm) | 27.6/700 |
| Height (in./mm) | 33.4/848 |
| Dry Weight (lbs/kg) | 1045/474 |
| Net Weight (lbs/kg | 11459/521 |
| Model (Manufacturer) | D902 (Kubota) |
| Type | Vertical, Water-Cooled 4-Cycle Diesel Engine |
| Displacement (cu.in. / liters) | 55 / 0.898 |
| Rated Output (hp / rpm) | 23.6 / 3600 |
| Fuel | ASTM No.2-D,S15 EPA regulation |
| Lubricant Oil | API Class CF or better (CJ excluded) |
| Fuel Tank Capacity (gal. / liters) | 11.4 / 43 |
| Lubrication Oil Volume (gal. / liters) | 0.95 / 3.6 (Effective 0.45 / 1.7) |
| Cooling Water Volume (gal. / liters) | 1.06 / 4.0 (Sub Tank Capacity 0.16 / 0.6 included) |
| Starting Motor Capacity (V - kW) | 12 - 1.2 |
| Charging Alternator Capacity (V - W) | 12 - 150 |
| Battery Capacity (V - Ah) | 12 - 36 (46B24L) |
