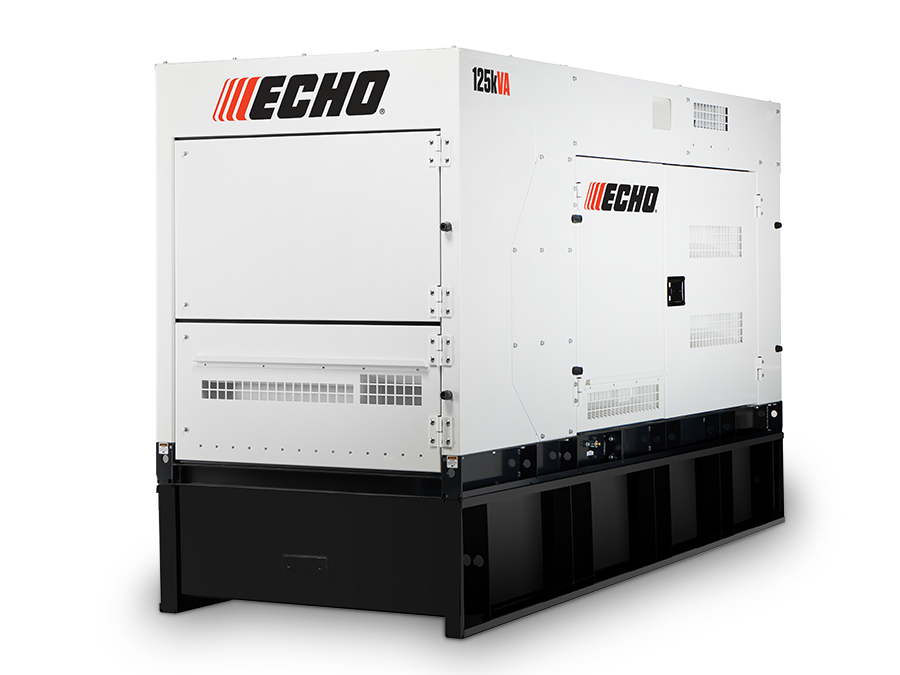

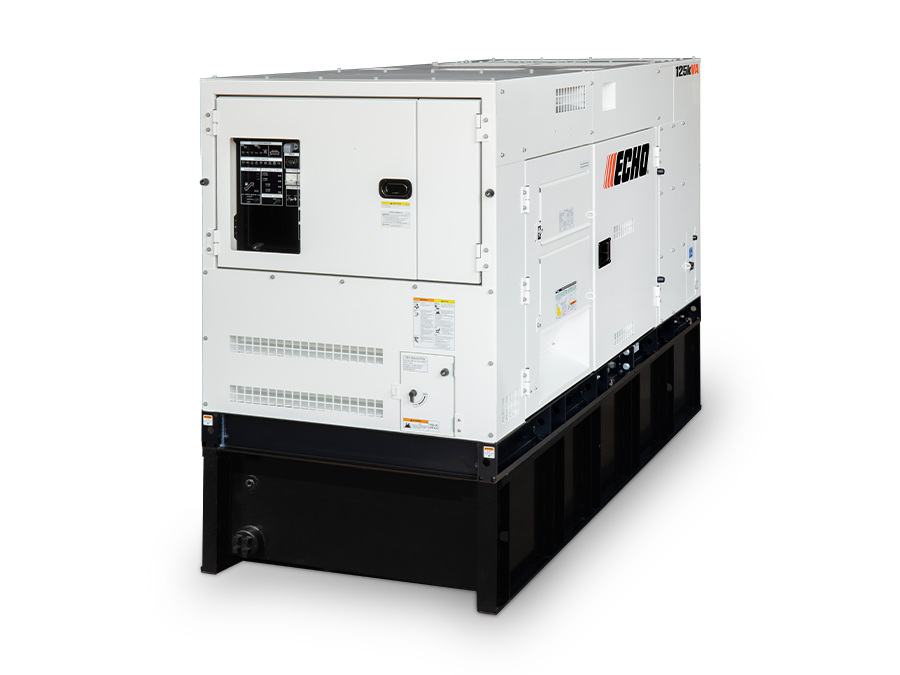

DGK125F
The ECHO DGK125F Generator delivers unstoppable power that never quits. Built for the toughest jobs, it provides reliable, continuous performance, ensuring you stay powered through demanding environments. Designed for industrial and commercial use, this generator combines efficiency with durability, making it the perfect solution for job sites that demand long-lasting power. Keep your operations running smoothly with ECHO — Power on and on.
TOP FEATURES- Simul-Phase™ Technology
- Isuzu 4HK1X – Tier 4 Final / CARB
- S.E.T. Smart Emissions Technology™
- 24-hour fuel tank with 110% Containment
DGK125F
Features
NONSTOP POWER. POWERED BY ECHO.
Simul-Phase™ Technology
A game-changing, versatile power solution for job sites, delivering dual-voltage, single- and three-phase current—no external transformers needed.
Priority Trip Breakers
Equipped with separate breakers for single- and three-phase loads, with user-selectable priority to protect preferred output during overloads.
S.E.T. Smart Emissions Technology™
Added protection during light or underloaded operation.
125 kVA Power Output
120/139/240V 1-phase, 208/240/480V 3-phase; delivers consistent power for a wide range of industrial applications, ensuring reliable operation for high-demand tasks.
Isuzu 4HK1X Diesel Engine– Tier 4 Final / CARB
152.3 hp at 1,800 rpm; Built with a rugged engine for continuous, heavy-duty operation, designed to endure tough conditions.
24-Hour Fuel Tank
Offers extended run time and 110% fluid containment for enhanced safety and compliance.
3-Way Fuel Valve for Remote Fuel Tanks
Enables quick, seamless switching between fuel sources for efficient fuel management.
Rental Ready Design
Engineered for long life and reliable performance in extreme environments.
Includes convenient lifting points for easy transport quick setup.
Ultra-Quiet Operation
Air-bending dampers minimize noise for quieter, more professional operation.
Specs
| Dimensions (L x W x H) | 120” x 48.8” x 59.1” (3050 x 1240 x 1500mm) |
| Unit dry weight | 6592 lbs (2990kg) |
| Make, model and type | ISUZU 4HK1X |
| Emission certification | US EPA Tier4 Final |
| Design features | Direct injection, Turbocharged, DOC and SCR |
| Displacement | 316 cu.in. (5,193L) |
| Continuous rated output | 152.3hp (113.6kW) @1800rpm (60Hz) |
| Starting system | Electric 12V DC |
| Internal fuel capacity | 171.7gal (650L) |
| Fuel consumption, full load | 7.1gal/hr (26.9L/hr) |
| Fuel consumption, 3/4 load | 5.5gal/hr (20.7L/hr) |
| Fuel consumption, 1/2 load | 3.9gal/hr (14.7L/hr) |
| Fuel consumption, 1/4 load | 2.1gal/hr (9.1L/hr) |
| Total coolant capacity | 8.2gal (31L) |
| Total oil capacity / oil class | 6.2gal (23.5L) |
| DEF tank capacity | 7.4gal x 2 (28L x 2) |
| dB(A) | 65 dB(A) |
| dB(A) | 66 dB(A) |
