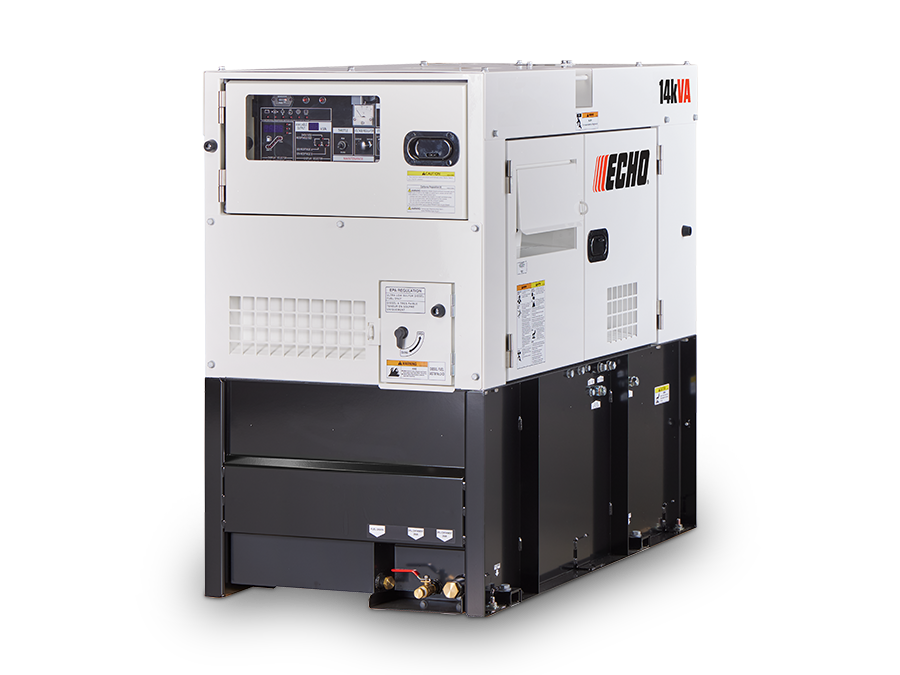

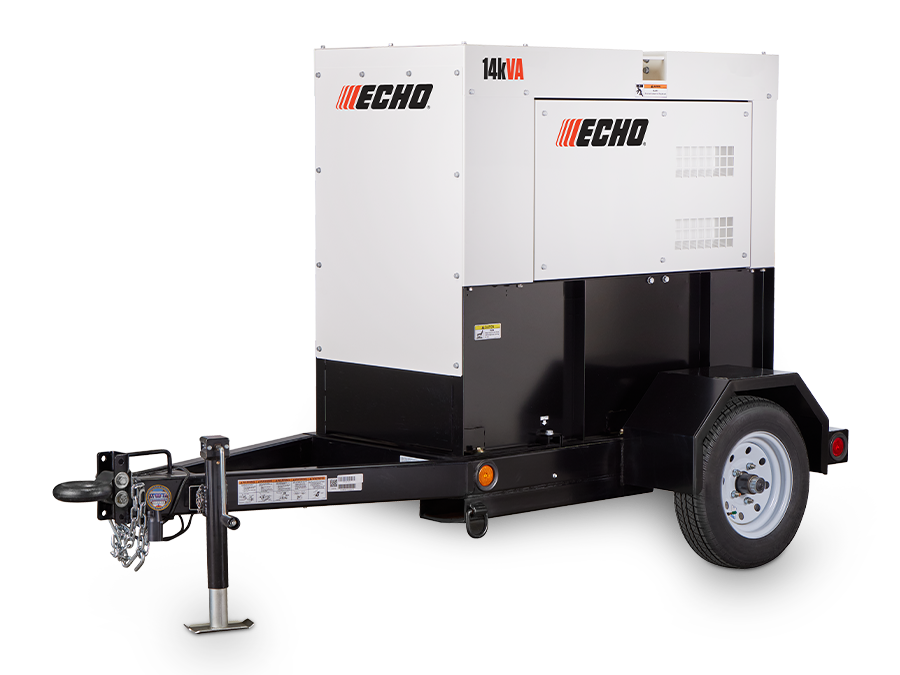

DGK14F
The ECHO DGK14F 14KVA Generator delivers dependable, high-capacity power backed by the proven performance of a Kubota D1503 engine. EPA/CARB Tier 4 Final compliant, it’s built for durability, efficiency, and cleaner emissions. Engineered for jobsite and commercial use, this generator offers powerful output, advanced safety features, and quiet operation in a compact footprint. Power on with confidence—anytime, anywhere.
TOP FEATURES- Rental Ready Design
- Kubota D1503 - Tier 4 Final / CARB
- 24-hour fuel tank with 110% Containment
DGK14F
Features
RELIABLE 14KVA POWER, BUILT TO PERFORM
Kubota D1503 Engine – Tier 4 Final / CAR
Industrial-grade, Tier 4 Final certified engine ensures long-lasting, low-emission performance.
14KVA Output Capacity
120/240V single phase; High-output power generation ideal for commercial, jobsite, and backup applications.
24-Hour Fuel Tank
Offers extended run time and 110% fluid containment for enhanced safety and compliance.
3-Way Fuel Valve for Remote Tanks
Enables smooth switching between fuel sources, allowing extended run times and minimizing refueling interruptions for maximum uptime
Rental Ready Design
Engineered for long life and reliable performance in extreme environments.
Includes convenient lifting points for easy transport quick setup.
Ultra-Quiet Operation
Air bending dampers reduce sound for quieter performance on any site.
Specs
| Dimensions (L x W x H) | 55.0” x 28.0” x 47.0” (1390 x 704 x 1204mm) |
| Unit dry weight | 1378 lbs. (620kg) |
| Make, model and type | Kubota D1503, 3 cylinder |
| Emission certification | US EPA Tier 4 Final |
| Design features | Indirect Injection |
| Displacement | 91 cu. in. (1.499 L) |
| Continuous rated output | 19.5 hp @ 1800 rpm |
| Starting system | Electric 12V DC |
| Internal fuel capacity | 34.3 gallons (130L) |
| Fuel consumption, full load | 1.37 gal./hr (5.2 L/hr) |
| Fuel consumption, 3/4 load | 1.00 gal./hr (3.8 L/hr) |
| Fuel consumption, 1/2 load | 0.71 gal./hr (2.7 L/hr) |
| Fuel consumption, 1/4 load | 0.50 gal./hr (1.9 L/hr) |
| Total coolant capacity | 2.3 gal. (8.8 L) |
| Total oil capacity / oil class | 1.9 gal. (7.3 L) |
| dB(A) | 58 dB(A) |
