DGK7F

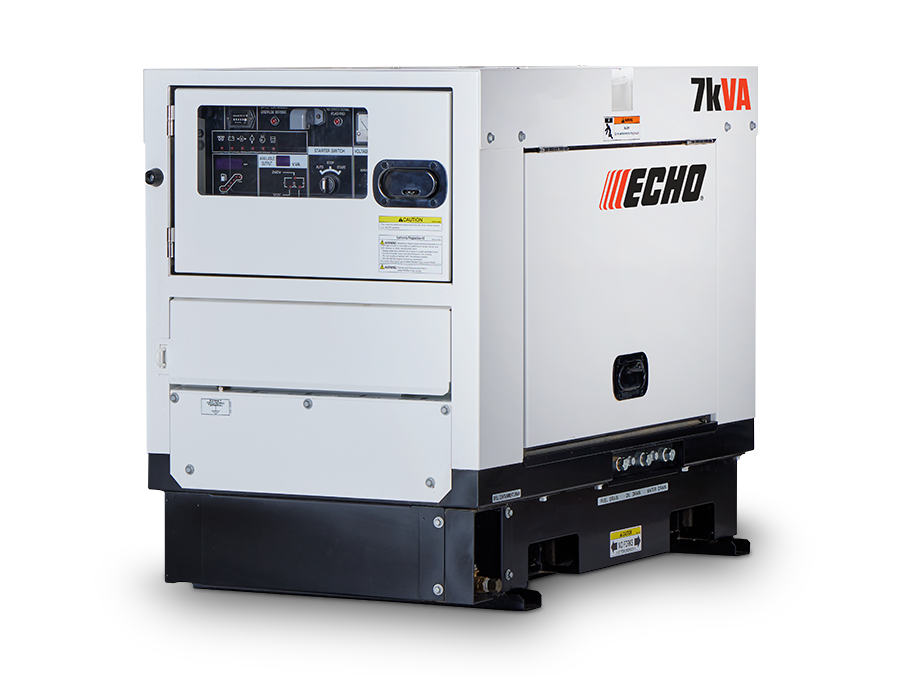

The ECHO DGK7F 7KVA Generator delivers dependable power in a compact footprint, powered by the efficient Kubota Z482 engine. Certified to EPA/CARB Tier 4 Final standards, it’s built for low-emission performance and durability in tough jobsite and commercial environments.

TOP FEATURES

Rental Ready Design
Kubota D482 - Tier 4 Final / CARB
14-hour fuel tank with 110% Containment

Request More Information

Features

RELIABLE POWER. COMPACT DESIGN.

Kubota Z482 Engine – Tier 4 Final / CAR

Proven industrial performance with EPA/CARB Tier 4 Final certification for cleaner, quieter operation.

7KVA Output

120/240V single phase; Reliable energy output suitable for a wide range of jobsite and commercial power needs.

 14-hour Full Load Fuel Tank with 110% Spill Containment

Supports extended runtime with integrated spill protection for enhanced safety.

3-Way Fuel Valve for Remote Tanks

Enables smooth switching between fuel sources, allowing extended run times and minimizing refueling interruptions for maximum uptime.

Rental Ready Design

Engineered for long life and reliable performance in extreme environments. Includes convenient lifting points for easy transport quick setup.

Ultra-Quiet Operation

Air bending dampers reduce sound for quieter performance on any site.

Specs

Dimensions (L x W x H)	42.7” x 25.0” x 34.9” (1095 x 640 x 895mm)
Unit dry weight	744 lbs. (335 kg)
Make, model and type	Kubota Z482
Emission certification	US EPA Tier 4 Final
Design features	Indirect Injection, Naturally Aspirated
Displacement	29.23 cu. in. (.479 L)
Continuous rated output	11.3 hp (8.4 kW) @ 3600 rpm
Starting system	Electric 12V DC
Internal fuel capacity	9.5 gallons (36.4 L)
Fuel consumption, full load	.68 gal./hr (2.6L/hr)
Fuel consumption, 3/4 load	.55 gal./hr (2.1L/hr)
Fuel consumption, 1/2 load	0.47 gal./hr (1.8L/hr)
Fuel consumption, 1/4 load	0.36 gal./hr (1.4L/hr)
Total coolant capacity	1.04 gallons (4.0 L)
Total oil capacity / oil class	.68 gallons (2.6 L)
dB(A)	62 dB(A)
dB(A)	64 dB(A)
