DGK15FL

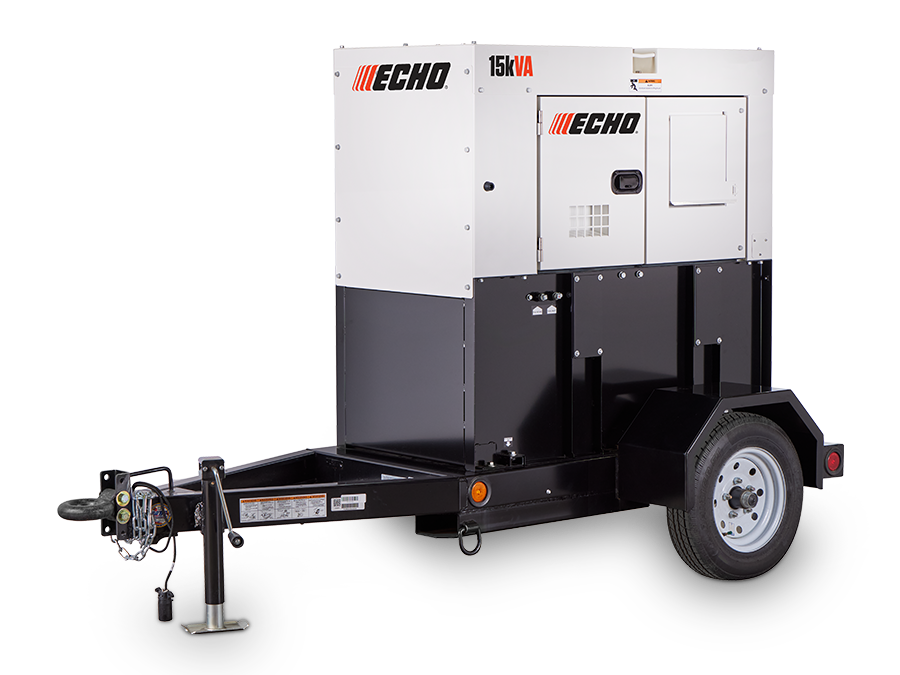

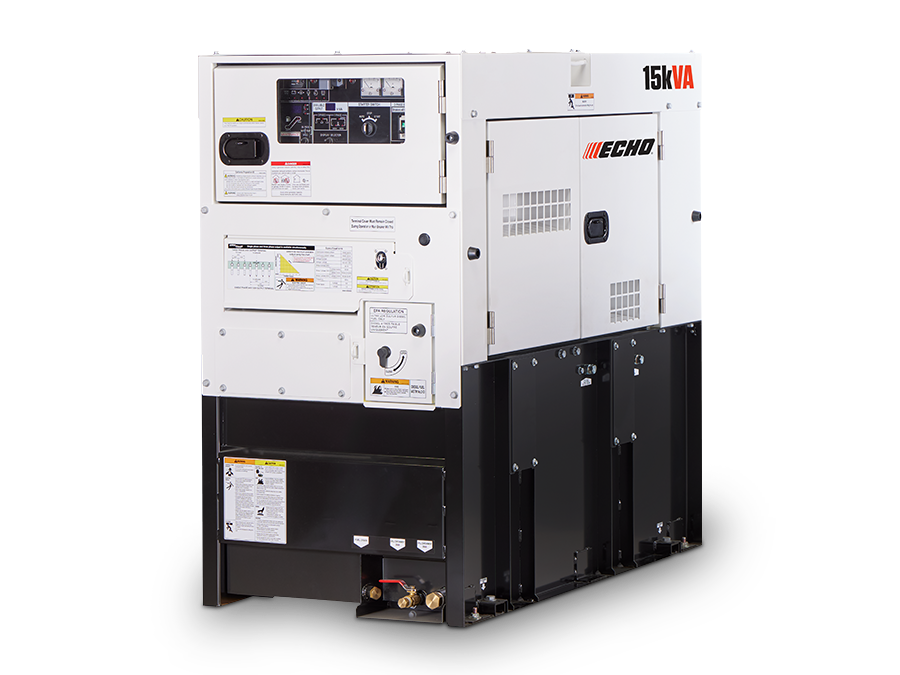

The ECHO DGK15FL Large Fuel Tank Generator delivers extended, prime power you can count on. Featuring a robust Kubota D902 engine and an oversized fuel tank, this generator is engineered for long runtimes, dependable output, and rugged reliability on demanding jobsites. Built to meet EPA/CARB Tier 4 Final standards, it’s your go-to solution for clean, efficient, long-lasting energy.

TOP FEATURES
  • Rental Ready Design​
  • Kubota D902 - Tier 4 Final / CARB​
  • 48-hour fuel tank with 110% Containment

Features

POWER THAT GOES THE DISTANCE

Kubota D902 Engine – Tier 4 Final / CAR
Trusted industrial-grade performance with low emissions and EPA/CARB Tier 4 Final certification.
15KVA Output
120/240V 1-phase, 208/240V 3-phase; Powers larger tools and equipment with consistent, reliable performance.
Large-Capacity Fuel Tank
48-hour at full load for extended operation with fewer refuels—ideal for long workdays and remote sites.
3-way fuel valve for remote fuel tanks
Allows for seamless switching and efficient fuel management, making it simple and fast to connect and switch between different fuel sources.
Rental Ready Design
Engineered for long life and reliable performance in extreme environments.​ Easy to transport and ideal for demanding commercial or industrial sites.
Ultra-Quiet Operation
Air bending dampers reduce sound for quieter performance on any site.

Specs

Dimensions (L x W x H) 52.1” x 27.8” x 50.2” (1325 x 705 x 1295mm)
Unit dry weight 1,190 lbs (540kg)
Make, model and type Kubota D902, 3 cylinder
Emission certification US EPA Tier 4 Final
Design features Indirect Injection
Displacement 54.8 cu. in. (0.898 L)
Continuous rated output 20.7 hp @ 3600 rpm
Starting system Electric 12V DC
Internal fuel capacity 60 gallons (227L)
Fuel consumption, full load 1.24 gal./hr (4.7L/hr)
Fuel consumption, 3/4 load 1.03 gal./hr (3.9L/hr)
Fuel consumption, 1/2 load 0.85 gal./hr (3.2L/hr)
Fuel consumption, 1/4 load 0.66 gal./hr (2.5L/hr)
Total coolant capacity 1.1 gallons (4.1L)
Total oil capacity / oil class 0.95 gal. (3.6L)
dB(A) 65 dB(A)
