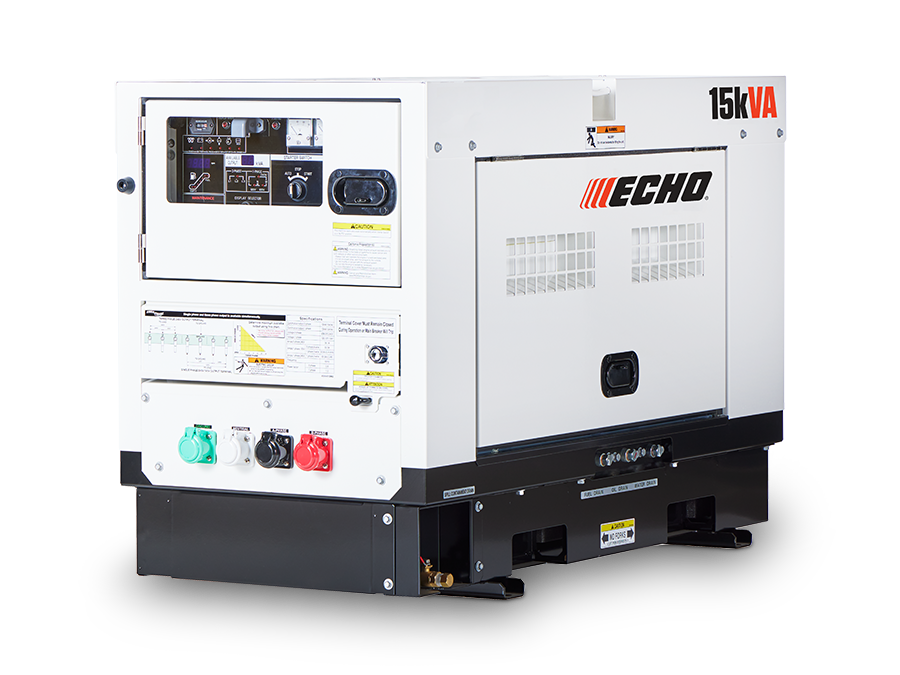

DGK15F

The ECHO DGK15F 15KVA Generator delivers industrial-grade performance powered by the fuel-efficient Kubota D902 engine. Designed for demanding jobsite and commercial applications, it offers clean, reliable power with EPA/CARB Tier 4 Final compliance. Built for extended operation, minimal noise, and reduced maintenance, this generator keeps your tools running and your team productive.

TOP FEATURES
  • Rental Ready Design​
  • Kubota D902 - Tier 4 Final / CARB​
  • 9-hour fuel tank with 110% Containment

Features

POWERFUL. EFFICIENT. JOBSITE READY

Kubota D902 Engine – Tier 4 Final / CAR
Trusted industrial-grade performance with low emissions and EPA/CARB Tier 4 Final certification.
15KVA Output
120/240V 1-phase, 208/240V 3-phase; Powers larger tools and equipment with consistent, reliable performance.
9-Hour Fuel Tank
Offers extended run time and 110% fluid containment for enhanced safety and compliance.​
​ 3-Way Fuel Valve for Remote Tanks
Enables smooth switching between fuel sources, allowing extended run times and minimizing refueling interruptions for maximum uptime.​
Rental Ready Design
Engineered for long life and reliable performance in extreme environments.​ Includes convenient lifting points for easy transport quick setup.​​
Ultra-Quiet Operation
Air bending dampers reduce sound for quieter performance on any site.​​

Specs

Dimensions (L x W x H) 51.6” x 25.2” x 35.2” (1310 x 640 x 895mm)
Unit dry weight 926 lbs. (420 kg)
Make, model and type Kubota D902, 3 cylinder
Emission certification US EPA Tier 4 Final
Design features Indirect Injection
Displacement 54.8 cu. in. (0.898 L)
Continuous rated output 20.7 hp @ 3600 rpm
Starting system Electric 12V DC
Internal fuel capacity 9.62 gallons (36.4L)
Fuel consumption, full load 1.24 gal./hr (4.7L/hr)
Fuel consumption, 3/4 load 1.03 gal./hr (3.9L/hr)
Fuel consumption, 1/2 load 0.85 gal./hr (3.2L/hr)
Fuel consumption, 1/4 load 0.66 gal./hr (2.5L/hr)
Total coolant capacity 1.06 gallons (4L)
Total oil capacity / oil class 0.95 gal. (3.6 L)
dB(A) 65 dB(A)
