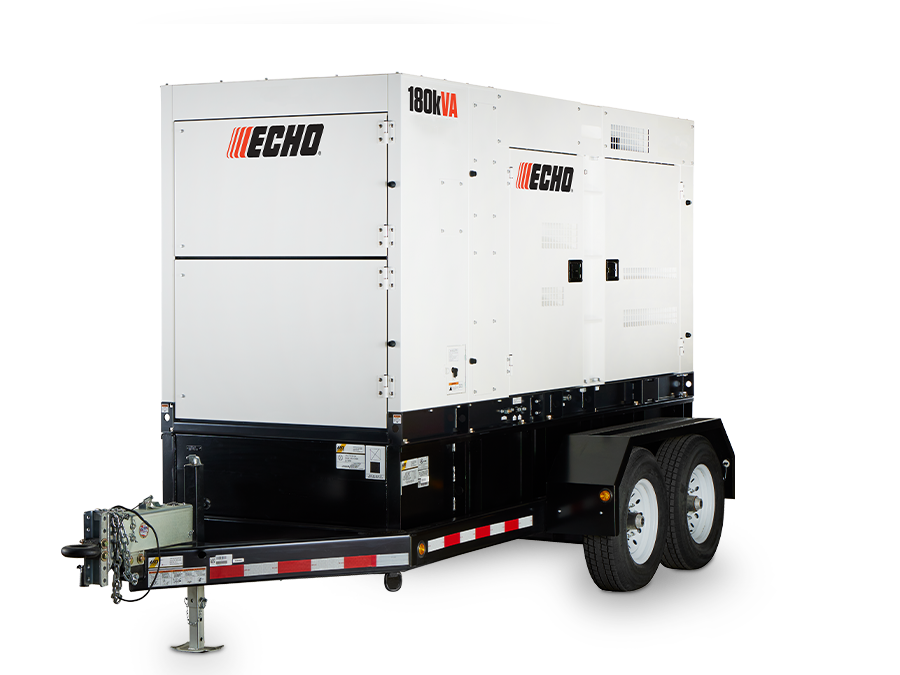

DGK180F

The ECHO DGK180F Generator delivers dependable, high-capacity power for demanding worksites and critical backup needs. Built for long runtimes and fuel efficiency, this generator combines rugged durability with smart design, making it ideal for professionals who rely on power that never quits. Whether for equipment or entire operations, it’s engineered to keep you running—efficiently and reliably.

TOP FEATURES
  • Simul-Phase™ Technology ​
  • Isuzu 6HK1 – Tier 4 Final / CARB​
  • S.E.T. Smart Emissions Technology™ ​
  • 24-hour fuel tank with 110% Containment

Features

RELIABLE POWER. UNRIVALED EFFICIENCY.

Simul-Phase™ Technology
A game-changing, versatile power solution for job sites, delivering dual-voltage, single- and three-phase current—no external transformers needed.​​
Priority Trip Breakers
Equipped with separate breakers for single- and three-phase loads, with user-selectable priority to protect preferred output during overloads.
S.E.T. Smart Emissions Technology™
Added protection during light or underloaded operation.
180 kVA Power Output
120/139/240V 1-phase, 208/240/480V 3-phase; Delivers consistent power for a wide range of industrial applications, ensuring reliable operation for high-demand tasks.
Isuzu 6HK1 Diesel Engine– Tier 4 Final / CARB
227.3 hp at 1,800 rpm; Built with a rugged engine for continuous, heavy-duty operation, designed to endure tough conditions.
24-Hour Fuel Tank
Offers extended run time and 110% fluid containment for enhanced safety and compliance.
3-Way Fuel Valve for Remote Fuel Tanks
Enables quick, seamless switching between fuel sources for efficient fuel management.​ ​
Rental Ready Design
Engineered for long life and reliable performance in extreme environments.​ Includes convenient lifting points for easy transport quick setup.
Ultra-Quiet Operation
Air-bending dampers minimize noise for quieter, more professional operation.

Specs

Dimensions (L x W x H) 143.7” x 52.8” x 87.8” (3650 x 1340 x 2230mm)
Unit dry weight 9370 lbs (4250kg)
Make, model and type ISUZU 6HK1
Emission certification US EPA Tier4 Final
Design features Direct injection, Turbocharged, DOC and SCR
Displacement 475 cu.in. (7,790L)
Continuous rated output 227.3hp (169.5kW) @1800rpm (60Hz)
Starting system Electric 24V DC
Internal fuel capacity 275gal (1042L)
Fuel consumption, full load 10.3gal/hr (39.1L/hr)
Fuel consumption, 3/4 load 7.8gal/hr (29.6L/hr)
Fuel consumption, 1/2 load 5.6gal/hr (21.3L/hr)
Fuel consumption, 1/4 load 3.6gal/hr (13.8L/hr)
Total coolant capacity 8.7gal (33L)
Total oil capacity / oil class 10.5gal (40L)
DEF tank capacity 7.3gal x 2 (28L x 2)
dB(A) 65 dB(A)
dB(A) 65 dB(A)
