DGK25F

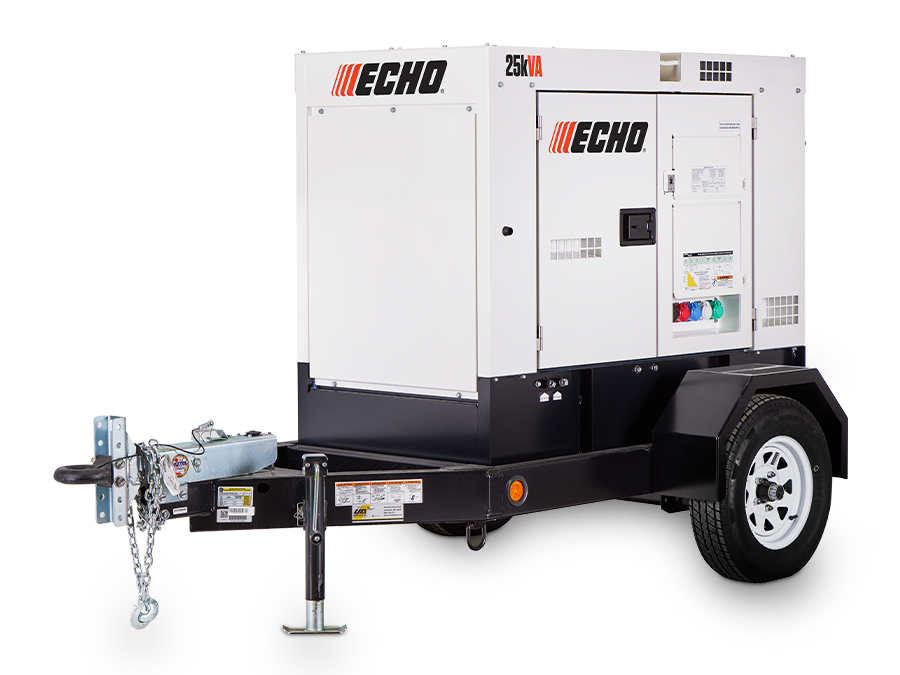

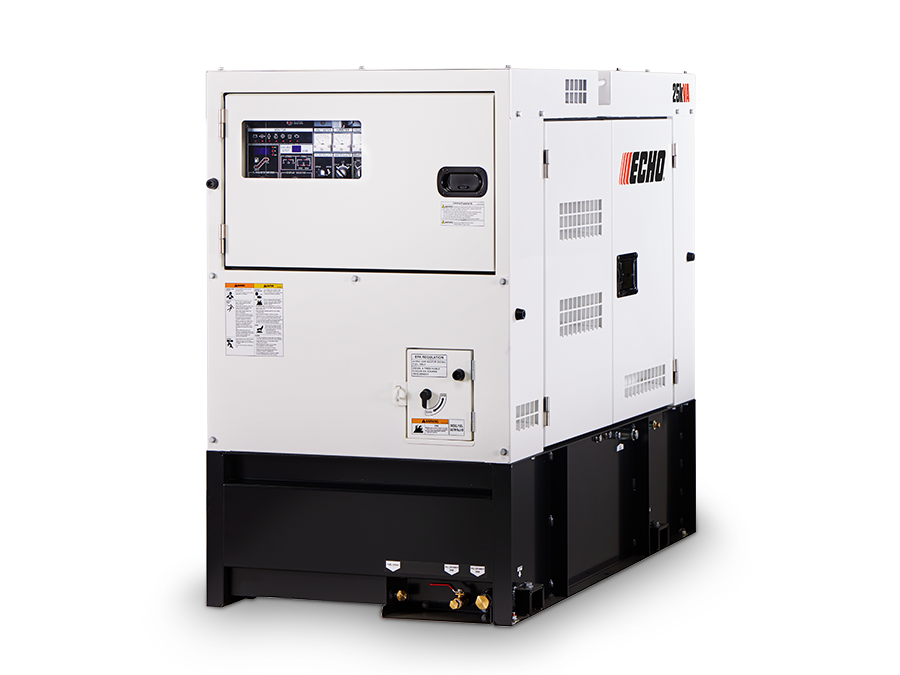

The ECHO DGK25F Generator delivers dependable, prime power in a compact, towable design made for heavy-duty worksites. Featuring a rugged Isuzu 4LE2T engine and Tier 4 Final EPA/CARB certification, this generator runs efficiently while meeting today’s strict emissions standards. Built for professional use, it ensures reliable performance in even the toughest conditions.
TOP FEATURES- Simul-Phase™ Technology
- Isuzu 4LE2T - Tier 4 Final / CARB
- 24-hour fuel tank with 110% Containment
DGK25F
Features
POWERFUL. PORTABLE. JOBSITE READY.
Simul-Phase™ Technology
A game-changing, versatile power solution for job sites, delivering dual-voltage, single- and three-phase current—no external transformers needed.
Priority Trip Breakers
Equipped with separate breakers for 1-phase and 3-phase loads. User selectable priority for 1-phase and/or 3-phase in case of overload situation.
25kVA High-Capacity Output
120/139/240V 1-phase, 208/240/480V 3-phase; Powers multiple applications with ease.
Isuzu 4LE2T Diesel Engine– Tier 4 Final / CAR
33hp at 1,800 rpm; durable, fuel-efficient performance with Tier 4 Final emissions compliance.
24-Hour Fuel Tank
Offers extended run time and 110% fluid containment for enhanced safety and compliance.
3-Way Fuel Valve for Remote Tanks
Enables smooth switching between fuel sources, allowing extended run times and minimizing refueling interruptions for maximum uptime.
Rental Ready Design
Engineered for long life and reliable performance in extreme environments.
Includes convenient lifting points for easy transport quick setup.
Ultra-Quiet Operation
Air-bending dampers minimize noise for quieter, more professional operation.
Specs
| Dimensions (L x W x H) | 63” x 33” x 55” (1603 x 850 x 1400mm) |
| Unit dry weight | 1929 lbs (875kg) |
| Make, model and type | Isuzu 4LE2T, 4 cylinder |
| Emission certification | US EPA Tier 4 Final |
| Design features | Direct Injection, Turbocharged |
| Displacement | 133 cu. in. (2.179 L) |
| Continuous rated output | 33 hp @ 1800 rpm |
| Starting system | Electric 12V DC |
| Internal fuel capacity | 51.5 gallons (195L) |
| Fuel consumption, full load | 1.6 gal./hr (6.1L/hr) |
| Fuel consumption, 3/4 load | 1.2 gal./hr (4.64L/hr) |
| Fuel consumption, 1/2 load | 0.9 gal./hr (3.6L/hr) |
| Fuel consumption, 1/4 load | 0.7 gal./hr (2.5L/hr) |
| Total coolant capacity | 2.6 gallons (10L) |
| Total oil capacity / oil class | 3.0 gal. (11.5L) |
| dB(A) | 59 dB(A) |
| dB(A) | 62 dB(A) |
