DGK36FS

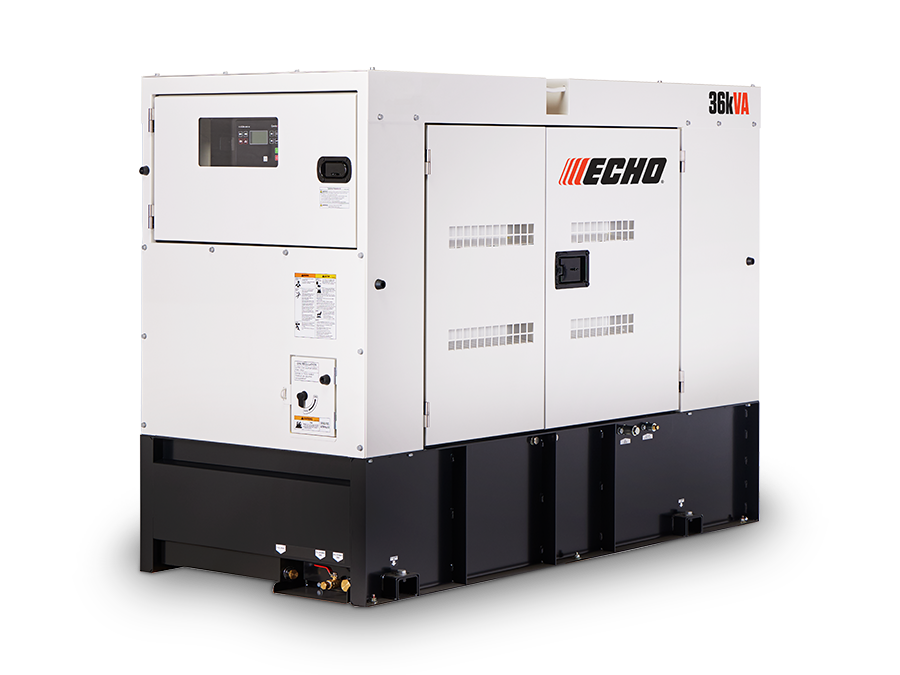

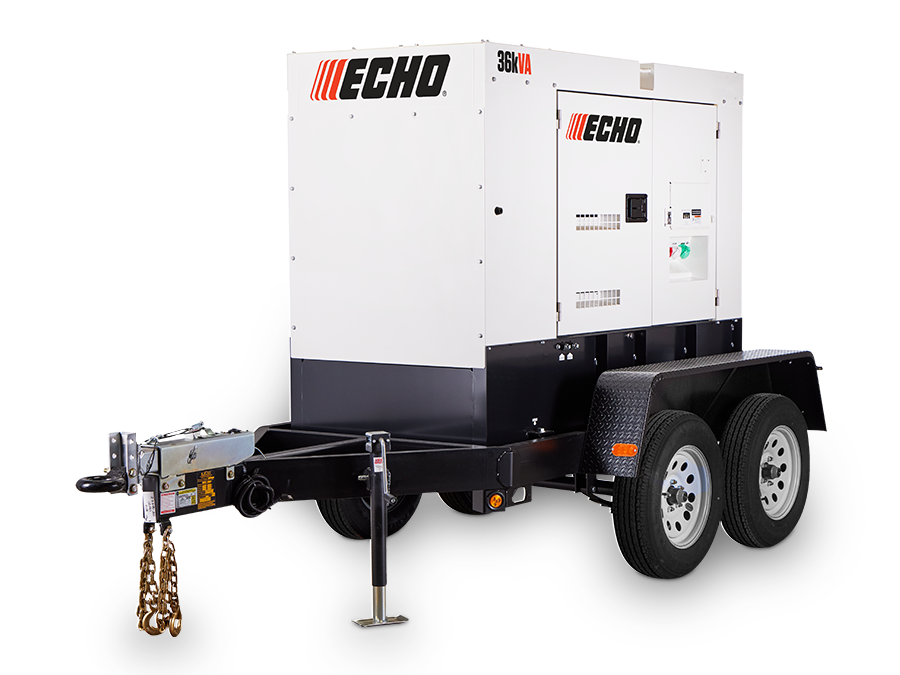

The ECHO DGK36FS Single-Phase Generator is engineered for commercial-grade performance with clean, consistent prime power delivery. Powered by a reliable Isuzu 4LE2X engine and meets Tier 4 Final EPA/CARB standards, it offers a perfect balance of strength and efficiency. Built for the most demanding applications, its quiet, compact, and towable design makes it ideal for job sites and backup power needs.
TOP FEATURES- Single-Phase Generator
- Isuzu 4LE2X - Tier 4 Final / CARB
- 24-hour fuel tank with 110% Containment
DGK36FS
Features
HIGH POWER. LOW EMISSIONS.
36kW Single-Phase Output
120/240V single phase; Delivers powerful, steady energy for large-scale tools and equipment.
Isuzu 4LE2X Diesel Engine– Tier 4 Final / CAR
59 hp at 1,800 rpm; industry-trusted engine designed for durability and fuel efficiency.
24-Hour Fuel Tank
Offers extended run time and 110% fluid containment for enhanced safety and compliance.
3-Way Fuel Valve for Remote Fuel Tanks
Enables quick, seamless switching between fuel sources for efficient fuel management.
Rental Ready Design
Engineered for long life and reliable performance in extreme environments.
Includes convenient lifting points for easy transport quick setup.
Ultra-Quiet Operation
Air-bending dampers minimize noise for quieter, more professional operation.
Specs
| Dimensions (L x W x H) | 83” x 37” x 61” (2100 x 950 x 1550mm) |
| Unit dry weight | 2620 lbs (1195kg) |
| Make, model and type | Isuzu 4LE2X, 4 cylinder |
| Emission certification | US EPA Tier 4 Final |
| Design features | Direct Injection, Turbocharged, intercooler |
| Displacement | 133 cu. in. (2.179 L) |
| Continuous rated output | 59 hp @ 1800 rpm |
| Starting system | Electric 12V DC |
| Internal fuel capacity | 79 gallons (300L) |
| Fuel consumption, full load | 2.8 gal./hr (10.7L/hr) |
| Fuel consumption, 3/4 load | 2.1 gal./hr (8.2L/hr) |
| Fuel consumption, 1/2 load | 1.5 gal./hr (5.9L/hr) |
| Fuel consumption, 1/4 load | 0.9 gal./hr (3.8L/hr) |
| Total coolant capacity | 2.9 gallons (11L) |
| Total oil capacity / oil class | 3.0 gal. (11.5L) |
| dB(A) | 65 dB(A) |
