DGK400F

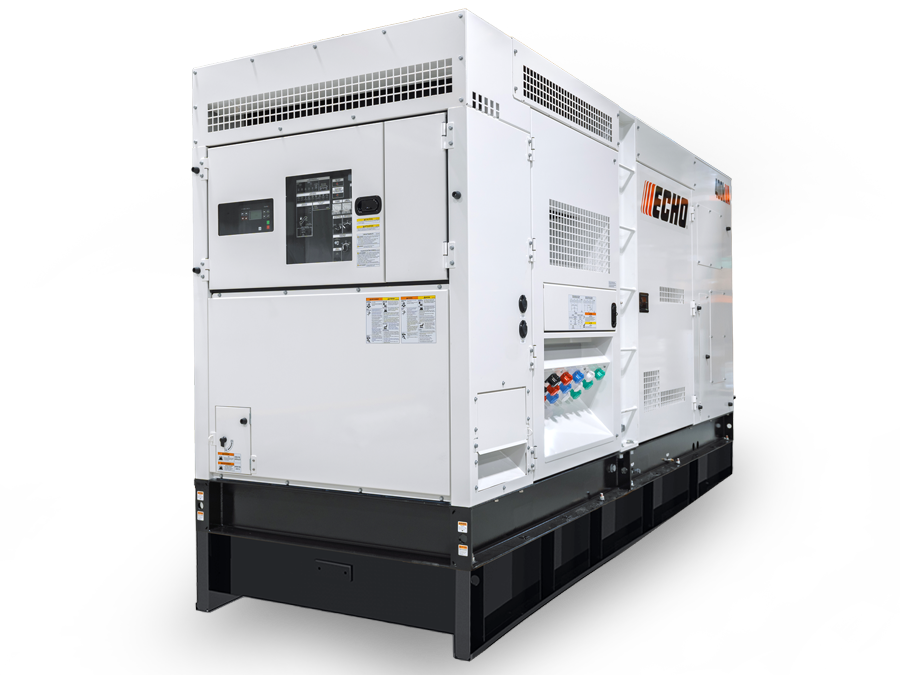

The ECHO 400 kVA generator delivers robust, reliable prime and standby power for demanding industrial jobs. Powered by a fuel-efficient diesel engine, it provides clean output, long run times, and Tier 4 Final compliance. A rugged, ultra-quiet enclosure and S.E.T. Smart Emissions Technology™ ensure dependable, low-noise performance in any conditions.

TOP FEATURES

Single Phase Generator
Isuzu 6WG1X - Tier 4 Final / CARB
Trailer mounted 24-hour fuel tank with 110% Containment

Request More Information

Features

BUILT FOR RUGGED JOBSITE USE

Isuzu 6WG1X Engine – Tier 4 Final / CARB

Powerful, industrial-grade performance with low-emission, Tier 4 Final / CARB compliance.

400 kVA Power Output

208/240/480V 3-phase; Ideal for high-demand equipment or site backup needs.

24-Hour Fuel Tank

Combined with the trailer tank offers extended run time and 110% fluid containment for enhanced safety and compliance.

3-Way Fuel Valve for Remote Fuel Tanks

Enables smooth switching between fuel sources, allowing extended run times and minimizing refueling interruptions for maximum uptime.

Rental Ready Design

Engineered for long life and reliable performance in extreme environments.Includes convenient lifting points for easy transport quick setup.

Ultra-Quiet Operation

Air bending dampers reduce sound for quieter performance on any site.

Specs

Dimensions (L x W x H)	143.7” x 52.8” x 87.8” (3650 x 1340 x 2230mm)
Unit dry weight	15035 lbs (6820kg)
Make, model and type	ISUZU 6WG1X
Emission certification	US EPA Tier4 Final
Design features	Direct injection, Turbocharged, DOC and SCR
Displacement	957 cu.in. (15.681L)
Continuous rated output	475.1hp (354.3kW) @1800rpm (60Hz)
Starting system	Electric 24V DC
Internal fuel capacity	100gal (379L)
Fuel consumption, full load	24.8 gal/hr (94L/hr)
Fuel consumption, 3/4 load	18.9 gal/hr (71.5L/hr)
Fuel consumption, 1/2 load	12.8 gal/hr (48.4L/hr)
Fuel consumption, 1/4 load	6.5 gal/hr (24.5L/hr)
Total coolant capacity	21.9 gal (83L)
Total oil capacity / oil class	15.1 gal (57L)
DEF tank capacity	14.8gal x (56L) (Two Tanks Combined Capacity)
dB(A)	68 dB(A)
dB(A)	69 dB(A)
