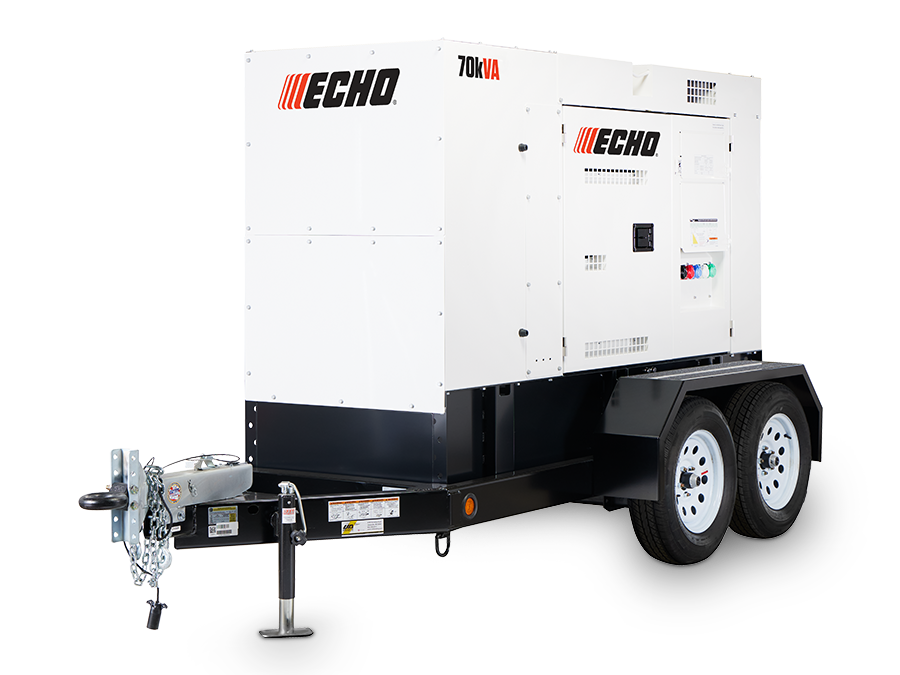

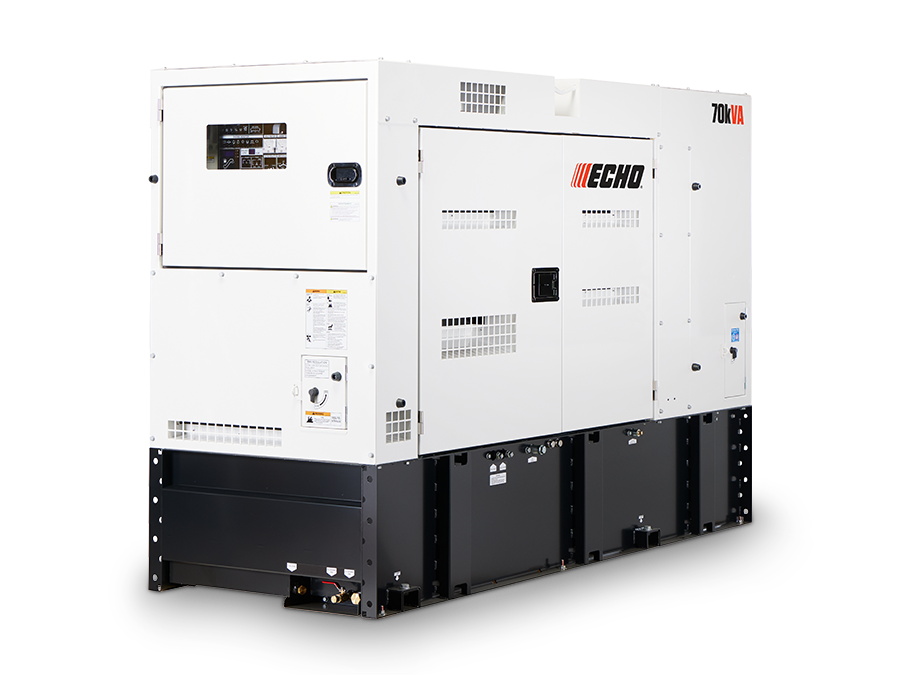

DGK70F
The ECHO DGK70F Generator is engineered for large-scale power needs, offering reliable and continuous energy for demanding applications. With its robust engine, superior fuel efficiency, and durable construction, it ensures maximum performance in harsh environments. Whether you’re powering a large job site or managing commercial operations, the ECHO DGK70F Generator provides long-lasting power and operational reliability.
TOP FEATURES- Simul-Phase™ Technology
- Isuzu 4JJ1X – Tier 4 Final / CARB
- S.E.T. Smart Emissions Technology™
- 24-hour fuel tank with 110% Containment
DGK70F
Features
UNSTOPPABLE POWER. TRUSTED ECHO.
Simul-Phase™ Technology
A game-changing, versatile power solution for job sites, delivering dual-voltage, single- and three-phase current—no external transformers needed.
Priority Trip Breakers
Equipped with separate breakers for single- and three-phase loads, with user-selectable priority to protect preferred output during overloads.
S.E.T. Smart Emissions Technology™
Added protection during light or underloaded operation.
70kVA Output Capacity
120/139/240V 1-phase, 208/240/480V 3-phase; Delivers reliable, high-performance power for industrial, commercial, and large-scale applications.
Isuzu 4JJ1X Diesel Engine– Tier 4 Final / CARB
95.2 hp at 1,800 rpm; Built with a rugged engine for continuous, heavy-duty operation, designed to endure tough conditions.
24-Hour Fuel Tank
Offers extended run time and 110% fluid containment for enhanced safety and compliance.
3-Way Fuel Valve for Remote Fuel Tanks
Enables quick, seamless switching between fuel sources for efficient fuel management.
Rental Ready Design
Engineered for long life and reliable performance in extreme environments.
Includes convenient lifting points for easy transport quick setup.
Ultra-Quiet Operation
Air-bending dampers minimize noise for quieter, more professional operation.
Specs
| Dimensions (L x W x H) | 102” x 37.5” x 69” (2590 x 951 x 1751mm) |
| Unit dry weight | 3898 lbs (1754kg) |
| Make, model and type | Isuzu 4JJ1X 4 cylinder |
| Emission certification | US EPA Tier 4 Final |
| Design features | Direct Injection, Turbocharged, Intercooler, DOC and SCR |
| Displacement | 183.0 cu. in. (2.999 L) |
| Continuous rated output | 95.2 hp (71.0kW) @ 1800 rpm (60Hz) |
| Starting system | Electric 12V DC |
| Internal fuel capacity | 105 gallons (400L) |
| Fuel consumption, full load | 4.4 gal./hr (16.6L/hr) |
| Fuel consumption, 3/4 load | 3.4 gal./hr (13.1L/hr) |
| Fuel consumption, 1/2 load | 2.5 gal./hr (9.5L/hr) |
| Fuel consumption, 1/4 load | 1.8 gal./hr (6.4L/hr) |
| Total coolant capacity | 3.7 gallons (14.0L) |
| Total oil capacity / oil class | 4.0 gal. (15.0L) |
| DEF tank capacity | 7.4 gal. (28.OL) |
| dB(A) | 61 dB(A) |
| dB(A) | 62 dB(A) |
