DGK125FP

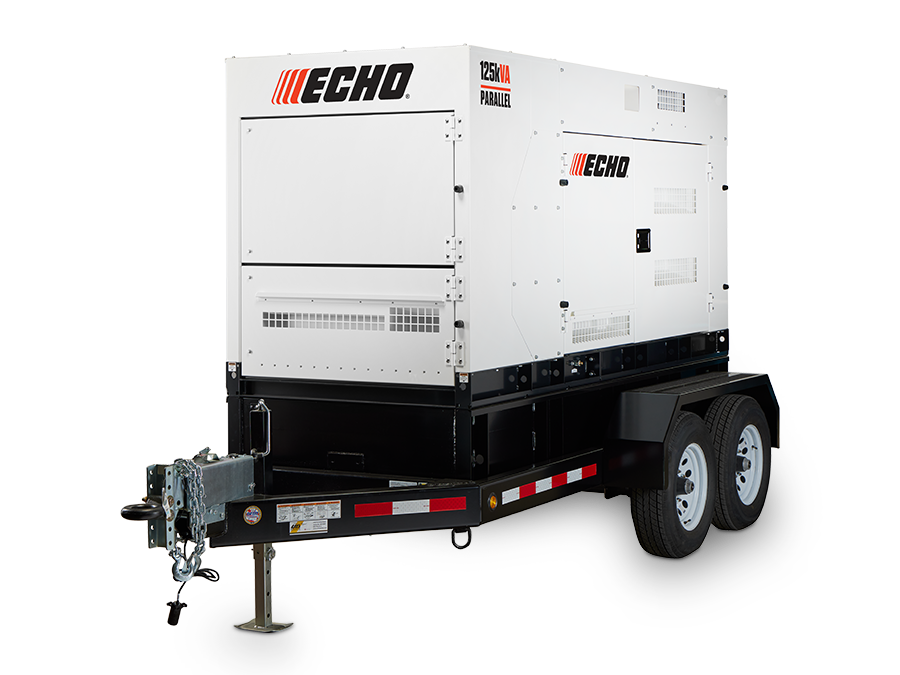

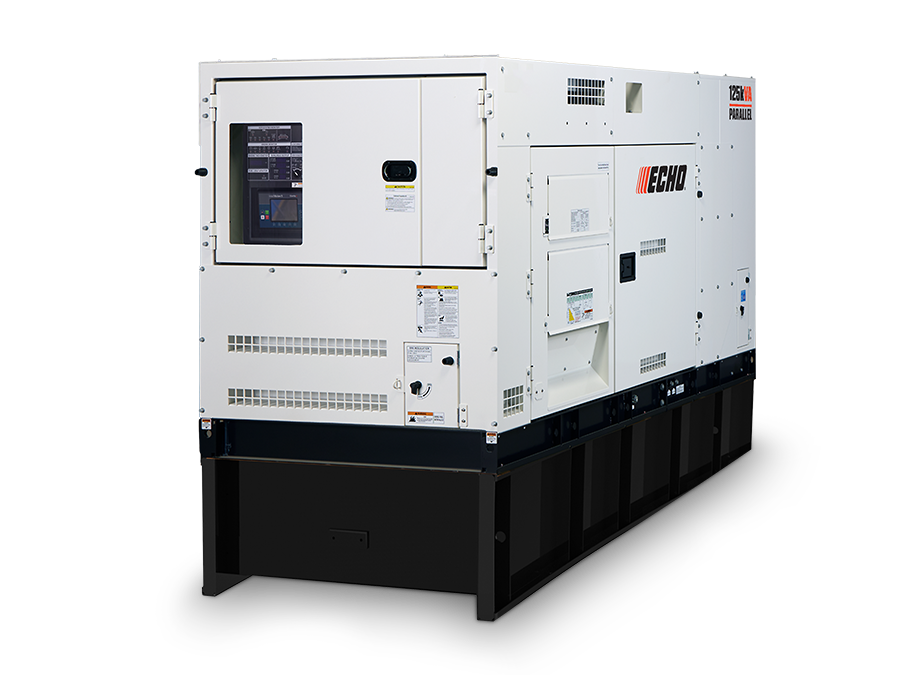

Experience reliable, uninterrupted power with the ECHO 125kVA Parallel Generator. Engineered for high-demand industrial environments, this generator delivers long-lasting performance and versatile functionality. Its efficient, parallel-ready design allows you to expand your power output with additional units—ideal for critical applications where uptime matters. Built to endure, it’s the dependable solution for professionals working in the most rugged conditions.
TOP FEATURES- Simul-Phase™ Technology
- Isuzu 4HK1X – Tier 4 Final / CARB
- S.E.T. Smart Emissions Technology™
- 24-hour fuel tank with 110% Containment
- Parallel up to 32 generators
DGK125FP
Features
POWER THAT NEVER QUITS
Parallel-Capable
Connect up to 32 ECHO generators using the included control cable for expanded power or built-in redundancy in critical applications.
Simul-Phase™ Technology (Single Unit, Non-Paralleling)
A game-changing, versatile power solution for job sites, delivering dual-voltage, single- and three-phase current—no external transformers needed. (Available in single unit non paralleling applications.)
Priority Trip Breakers (Single Unit, Non-Paralleling)
Equipped with separate breakers for single- and three-phase loads, with user-selectable priority to protect preferred output during overloads.
S.E.T. Smart Emissions Technology™
Added protection during light or underloaded operation.
125 kVA Power Output
120/139/240V 1-phase, 208/240/480V 3-phase; Delivers consistent power for a wide range of industrial applications, ensuring reliable operation for high-demand tasks.
Isuzu 4HK1X Diesel Engine– Tier 4 Final / CARB
152.3 hp at 1,800 rpm; Built with a rugged engine for continuous, heavy-duty operation, designed to endure tough conditions.
24-Hour Fuel Tank
Offers extended run time and 110% fluid containment for enhanced safety and compliance.
3-Way Fuel Valve for Remote Fuel Tanks
Enables quick, seamless switching between fuel sources for efficient fuel management.
Rental Ready Design
Engineered for long life and reliable performance in extreme environments.
Includes convenient lifting points for easy transport quick setup.
Ultra-Quiet Operation
Air-bending dampers minimize noise for quieter, more professional operation
Specs
| Dimensions (L x W x H) | 120” x 48.8” x 59.1” (3050 x 1240 x 1500mm) |
| Unit dry weight | 6592 lbs (2990kg) |
| Make, model and type | ISUZU 4HK1X |
| Emission certification | US EPA Tier4 Final |
| Design features | Direct injection, Turbocharged, DOC and SCR |
| Displacement | 316 cu.in. (5,193L) |
| Continuous rated output | 152.3hp (113.6kW) @1800rpm (60Hz) |
| Starting system | Electric 12V DC |
| Internal fuel capacity | 171.7gal (650L) |
| Fuel consumption, full load | 7.1gal/hr (26.9L/hr) |
| Fuel consumption, 3/4 load | 5.5gal/hr (20.7L/hr) |
| Fuel consumption, 1/2 load | 3.9gal/hr (14.7L/hr) |
| Fuel consumption, 1/4 load | 2.1gal/hr (9.1L/hr) |
| Total coolant capacity | 8.2gal (31L) |
| Total oil capacity / oil class | 6.2gal (23.5L) |
| DEF tank capacity | 7.4gal x 2 (28L x 2) |
| dB(A) | 65 dB(A) |
| dB(A) | 66 dB(A) |
