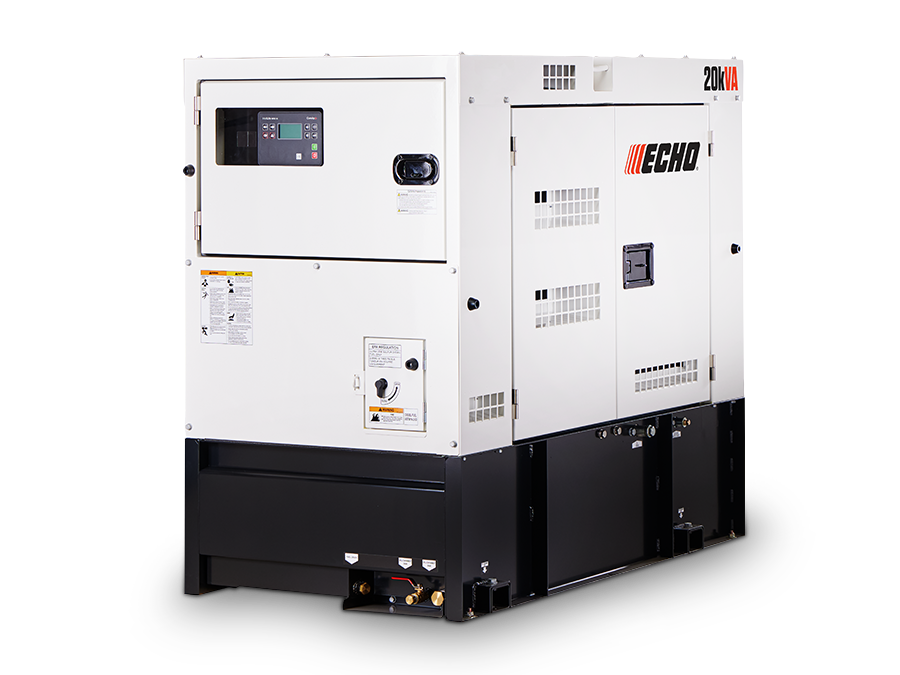

DGK20FS

The ECHO DGK20FS Single Phase Generator delivers robust, reliable prime power for the most demanding jobsite and backup power needs. Powered by a fuel-efficient Isuzu 4LE2T engine and built for durability, it provides clean single-phase output and long run times. Designed for pros who need serious, low-emission power they can depend on, it meets EPA/CARB Tier 4 Final standards for cleaner performance.

TOP FEATURES
  • Single Phase Generator​
  • Isuzu 4LE2T - Tier 4 Final / CARB​
  • 24-hour fuel tank with 110% Containment

Features

HIGH-POWER, SINGLE-PHASE OUTPUT​

​​Isuzu 4LE2T Engine – Tier 4 Final / CAR
Powerful, industrial-grade performance with low-emission, Tier 4 Final / CARB compliance.
20kW Single-Phase Output
120/240V 1-phase; Ideal for high-demand tools, equipment, or site backup needs.
24-Hour Fuel Tank
Offers extended run time and 110% fluid containment for enhanced safety and compliance.​​
3-Way Fuel Valve for Remote Tanks
Enables smooth switching between fuel sources, allowing extended run times and minimizing refueling interruptions for maximum uptime.​
Rental Ready Design
Engineered for long life and reliable performance in extreme environments.​ Includes convenient lifting points for easy transport quick setup.
Ultra-Quiet Operation
Air bending dampers reduce sound for quieter performance on any site.

Specs

Dimensions (L x W x H) 63” x 33” x 55” (1603 x 850 x 1400mm)
Unit dry weight 1929 lbs (875kg)
Make, model and type Isuzu 4LE2T, 4 cylinder
Emission certification US EPA Tier 4 Final
Design features Direct Injection, Turbocharged
Displacement 133 cu. in. (2.179 L)
Continuous rated output 33 hp @ 1800 rpm
Starting system Electric 12V DC
Internal fuel capacity 51.5 gallons (195L)
Fuel consumption, full load 1.6 gal./hr (6.1L/hr)
Fuel consumption, 3/4 load 1.2 gal./hr (4.64L/hr)
Fuel consumption, 1/2 load 0.9 gal./hr (3.6L/hr)
Fuel consumption, 1/4 load 0.7 gal./hr (2.5L/hr)
Total coolant capacity 2.6 gallons (10L)
Total oil capacity / oil class 2.7 gallons (10.4L)
dB(A) 62 dB(A)
