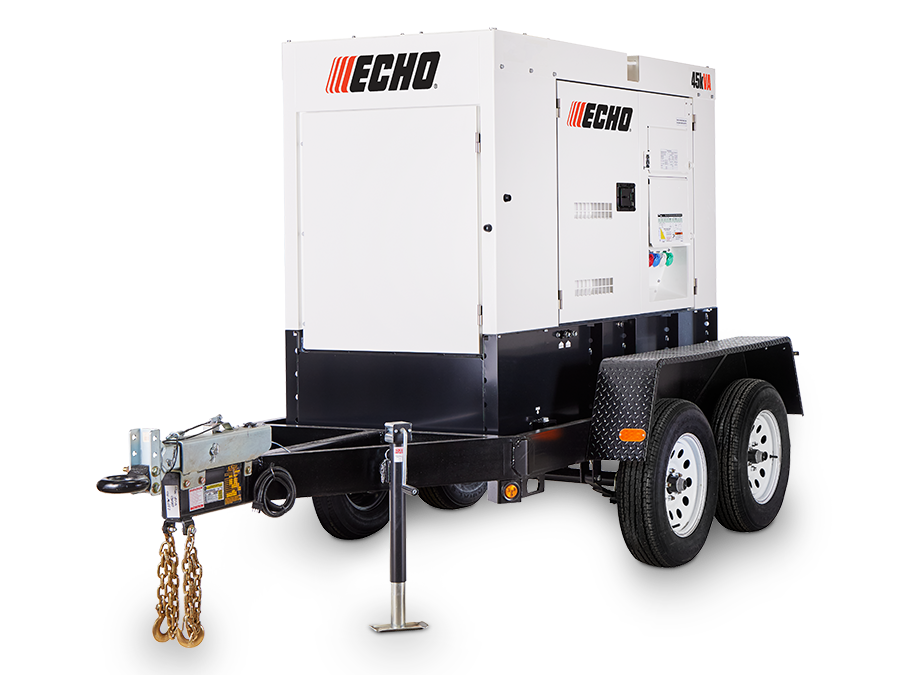

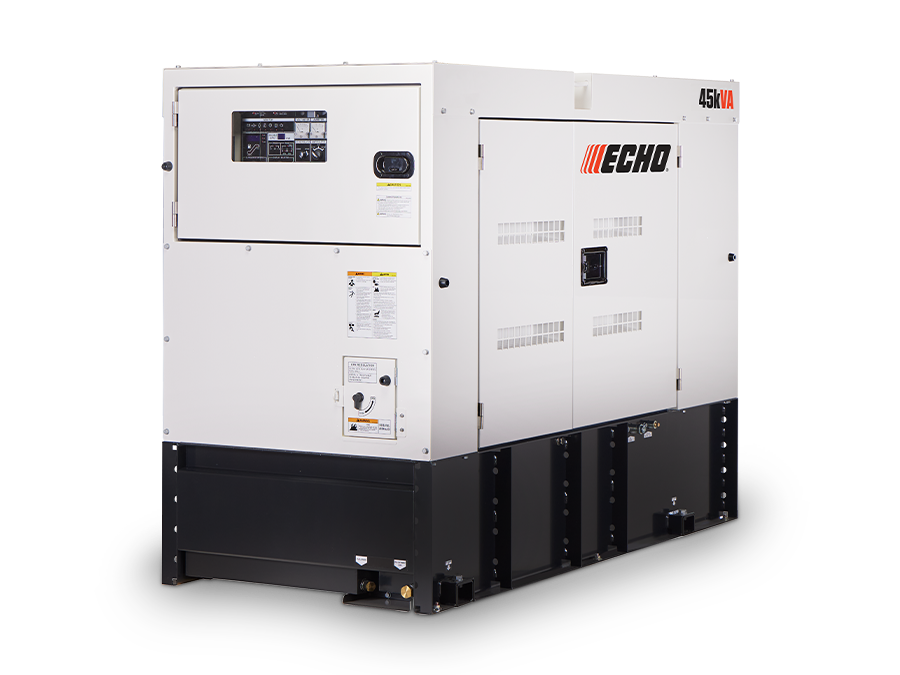

DGK45F
The ECHO DGK45F Generator provides dependable prime power for demanding applications with robust features and high performance. Powered by a durable Isuzu 4LE2X engine and designed for seamless operation in challenging environments, this generator is the ideal solution for heavy-duty use. Whether it's for industrial, commercial, or job site power, the DGK45F ensures efficient energy with low emissions and minimal noise.
TOP FEATURES- Simul-Phase™ Technology
- Isuzu 4LE2X - Tier 4 Final / CARB
- 24-hour fuel tank with 110% Containment
DGK45F
Features
TRUSTED POWER FOR TOUGH JOBS.
Simul-Phase™ Technology
A game-changing, versatile power solution for job sites, delivering dual-voltage, single- and three-phase current—no external transformers needed.
Priority Trip Breakers
Equipped with separate breakers for 1-phase and 3-phase loads. User selectable priority for 1-phase and/or 3-phase in case of overload situation.
45kVA Output Capacity
120/139/240V 1-phase, 208/240/480V 3-phase; Provides consistent, reliable power for industrial and commercial needs.
Isuzu 4LE2X Diesel Engine – Tier 4 Final / CARB
59 hp at 1,800 rpm; built to handle tough tasks, ensuring long-lasting, high-performance operation.
24-Hour Fuel Tank
Offers extended run time and 110% fluid containment for enhanced safety and compliance.
3-Way Fuel Valve for Remote Fuel Tanks
Enables quick, seamless switching between fuel sources for efficient fuel management.
Rental Ready Design
Engineered for long life and reliable performance in extreme environments.
Includes convenient lifting points for easy transport quick setup.
Ultra-Quiet Operation
Air-bending dampers minimize noise for quieter, more professional operation.
Specs
| Dimensions (L x W x H) | 83” x 37” x 61” (2100 x 950 x 1550mm) |
| Unit dry weight | 2634 lbs (1195kg) |
| Make, model and type | Isuzu 4LE2X, 4 cylinder |
| Emission certification | US EPA Tier 4 Final |
| Design features | Direct Injection, Turbocharged, intercooler |
| Displacement | 133 cu. in. (2.179 L) |
| Continuous rated output | 59 hp @ 1800 rpm |
| Starting system | Electric 12V DC |
| Internal fuel capacity | 79 gallons (300L) |
| Fuel consumption, full load | 2.8 gal./hr (10.7L/hr) |
| Fuel consumption, 3/4 load | 2.1 gal./hr (8.2L/hr) |
| Fuel consumption, 1/2 load | 1.5 gal./hr (5.9L/hr) |
| Fuel consumption, 1/4 load | 0.9 gal./hr (3.8L/hr) |
| Total coolant capacity | 2.9 gallons (11L) |
| Total oil capacity / oil class | 3.0 gal. (11.5L) |
| dB(A) | 63 dB(A) |
