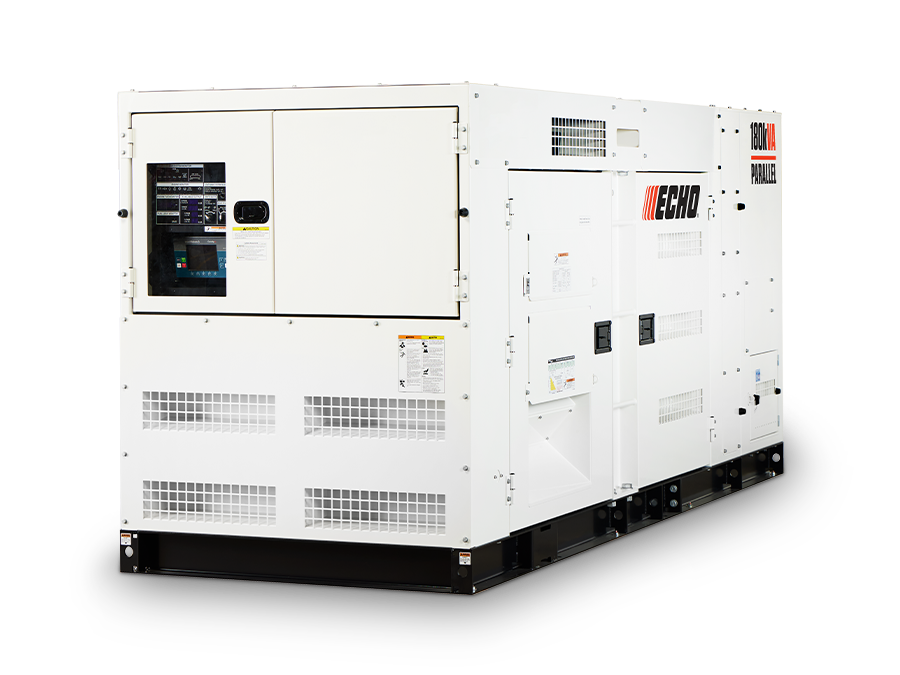

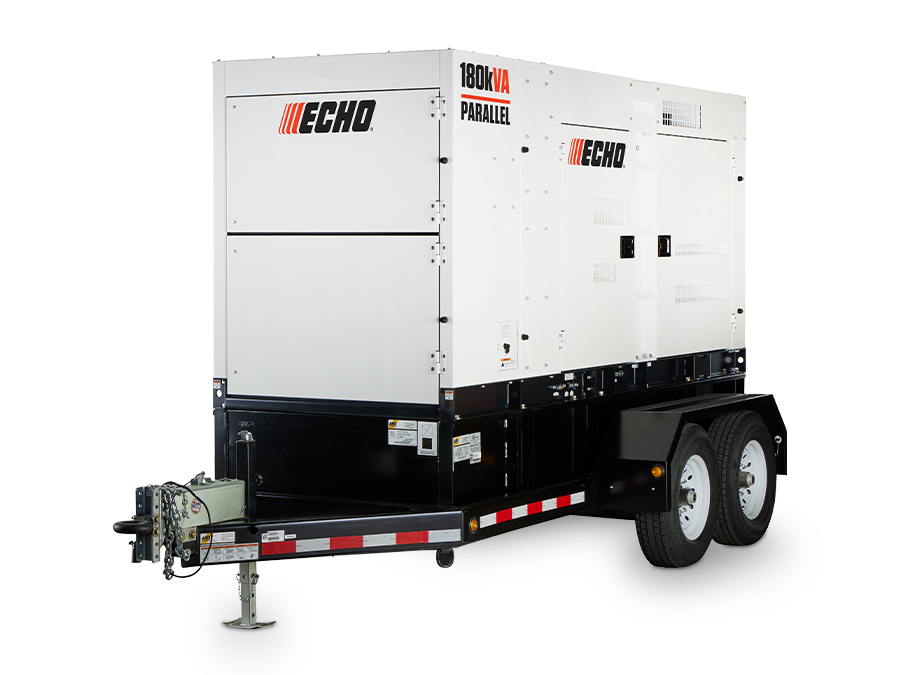

DGK180FP
The ECHO DGK180FP Parallel Generator is engineered for professionals who demand scalable, fuel-efficient power that keeps going. Designed to link with a second unit for doubled output, this parallel-capable generator delivers extended runtime, quiet operation, and rugged durability—all backed by the strength of ECHO Power That Never Quits. Ideal for large job sites, events, and backup needs where performance and reliability can’t be compromised.
TOP FEATURES- Simul-Phase™ Technology
- Isuzu 6HK1 – Tier 4 Final / CARB
- S.E.T. Smart Emissions Technology™
- 24-hour fuel tank with 110% Containment
- Parallel up to 32 generators
DGK180FP
Features
EFFICIENT POWER. BUILT TO ENDURE.
Parallel-Capable
Connect up to 32 ECHO generators using the included control cable for expanded power or built-in redundancy in critical applications.
Simul-Phase™ Technology (Single Unit, Non-Paralleling)
A game-changing, versatile power solution for job sites, delivering dual-voltage, single- and three-phase current—no external transformers needed. (Available in single unit non paralleling applications.)
Priority Trip Breakers (Single Unit, Non-Paralleling)
Equipped with separate breakers for single- and three-phase loads, with user-selectable priority to protect preferred output during overloads.
S.E.T. Smart Emissions Technology™
Added protection during light or underloaded operation.
180 kVA Power Output
120/139/240V 1-phase, 208/240/480V 3-phase; Delivers consistent power for a wide range of industrial applications, ensuring reliable operation for high-demand tasks.
Isuzu 6HK1 Diesel Engine– Tier 4 Final / CARB
227.3 hp at 1,800 rpm; Built with a rugged engine for continuous, heavy-duty operation, designed to endure tough conditions.
24-Hour Fuel Tank
Offers extended run time and 110% fluid containment for enhanced safety and compliance.
3-Way Fuel Valve for Remote Fuel Tanks
Enables quick, seamless switching between fuel sources for efficient fuel management.
Rental Ready Design
Engineered for long life and reliable performance in extreme environments. Includes convenient lifting points for easy transport quick setup.
Ultra-Quiet Operation
Air-bending dampers minimize noise for quieter, more professional operation.
Specs
| Dimensions (L x W x H) | 143.7” x 52.8” x 87.8” (3650 x 1340 x 2230mm) |
| Unit dry weight | 9370 lbs (4250kg) |
| Make, model and type | ISUZU 6HK1 |
| Emission certification | US EPA Tier4 Final |
| Design features | Direct injection, Turbocharged, DOC and SCR |
| Displacement | 475 cu.in. (7,790L) |
| Continuous rated output | 227.3hp (169.5kW) @1800rpm (60Hz) |
| Starting system | Electric 24V DC |
| Internal fuel capacity | 275gal (1042L) |
| Fuel consumption, full load | 10.3gal/hr (39.1L/hr) |
| Fuel consumption, 3/4 load | 7.8gal/hr (29.6L/hr |
| Fuel consumption, 1/2 load | 5.6gal/hr (21.3L/hr) |
| Fuel consumption, 1/4 load | 3.6gal/hr (13.8L/hr |
| Total coolant capacity | 8.7gal (33L |
| Total oil capacity / oil class | 10.5gal (40L) |
| DEF tank capacity | 7.3gal x 2 (28L x 2) |
| dB(A) | 65 dB(A) |
